EU- Pneumatic Seals

EU- Pneumatic Seals

Range of application
Work pressure:≤16bar
Work temperature：-20~+80℃
Superficial velocity：≤1m/s
Material: TPU
Y-Eu piston rod seals are made of TPU. After processing, it remains its
stability quality.
Compared with other commercial TPU , it has excellent performance in against
friction and pressure,and expander temperature range.

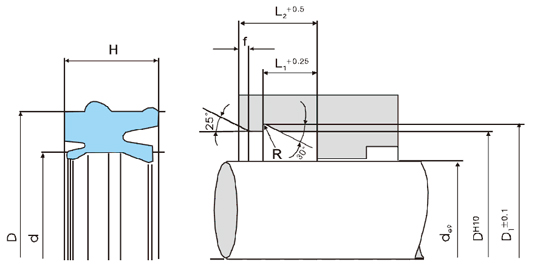

Unit:mm
No.	d	D	H	D1	L1	L2	R	f
Y-EU12	12	19	10	21	7.7	12	1	7.7
Y-EU12-1	12	20	10.7	22	8.8	13	1.1	1.5
Y-EU12-2	12	22		24
Y-EU14	14	24		26
Y-EU16	16	26		28
Y-EU18-1	18	26		28
Y-EU18-2	18	28		30
Y-EU20	20	30		32
Y-EU22	22	32	11.2	34.5	9.4	14	1.4	2
Y-EU25	25	35		37.5
Y-EU30	30	40		42.5
Y-EU32	32	42		44.5
Y-EU40	40	50		52.5
Y-EU45	45	55	12.2	58.2	10.4	15	1.8
Y-EU50	50	60	12.2	63.2	10.4	15
Y-EU63	63	75	13.0	78.2	11.4	16
Please contact us for other specifications.
